Sensor, Fuel Pressure: Removal: Removal

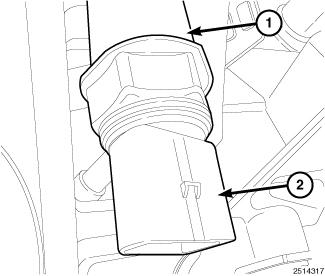

Fig 1: Fuel Rail Pressure Regulator Harness Connector

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Remove the engine cover.
Disconnect the fuel rail pressure sensor harness connector (2).

Fig 2: Lock Tabs & Engine Wire Harness
Courtesy of CHRYSLER GROUP, LLC
Release the four lock tabs (1) lift up and position aside engine wire harness (2).

Fig 3: Fuel Rail & Fuel Rail Pressure Sensor
Courtesy of CHRYSLER GROUP, LLC
Remove the fuel rail pressure sensor (2) from fuel rail (1).
