Sending Unit And Sensor, Fuel Level: Removal: Removal

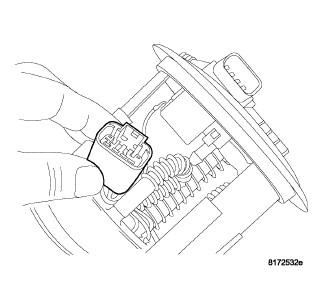

Fig 1: Fuel Pump/Level Sensor Connector

GC0103147

Courtesy of CHRYSLER GROUP, LLC

Remove fuel pump module. Refer to MODULE, FUEL PUMP, REMOVAL .
Depress retaining tab and remove the fuel pump/level sensor connector from the BOTTOM of the fuel pump module electrical connector.
NOTE:
The pump module harness on TOP of flange is not serviceable or removable.

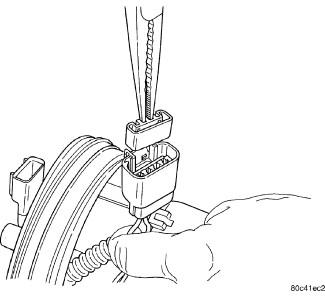

Fig 2: Wedge Lock
Courtesy of CHRYSLER GROUP, LLC
Remove the wedge lock from the electrical connector.

Fig 3: Terminal Removal Tool
Courtesy of CHRYSLER GROUP, LLC

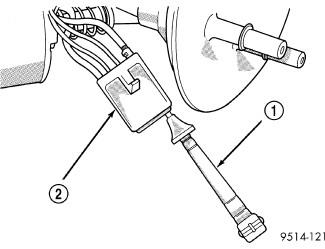

1 - TERMINAL REMOVAL TOOL

2 - FUEL LEVEL SENSOR CONNECTOR
Using the (special tool #C-4334, Extractor) tool (1) terminal remover or equivalent, remove terminals from level sensor connector (2).

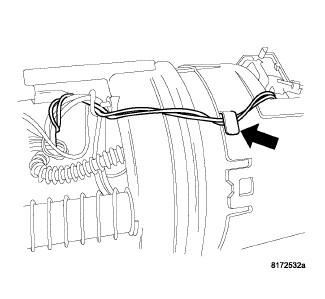

Fig 4: Fuel Level Sensor Wire Retainer
Courtesy of CHRYSLER GROUP, LLC

1 - FUEL LEVER SENSOR
Remove wire from wire retainer.

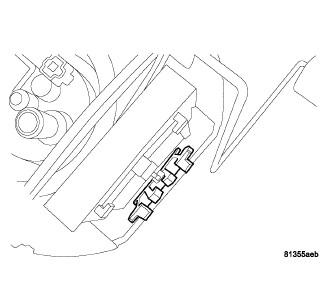

Fig 5: Level Sensor Tabs
Courtesy of CHRYSLER GROUP, LLC

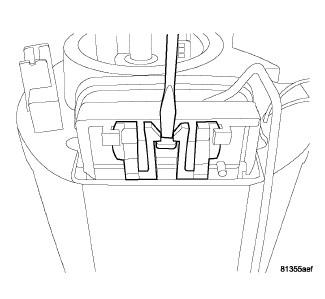

Fig 6: Releasing Tabs From Level Sensor
Courtesy of CHRYSLER GROUP, LLC

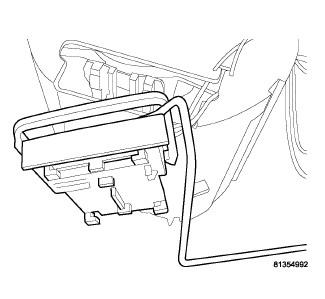

Fig 7: Level Sensor
Courtesy of CHRYSLER GROUP, LLC
Depress the tab and unlock the sender card.
Slide level sensor out of channel in module.
