Injector(S), Fuel: Description: Description

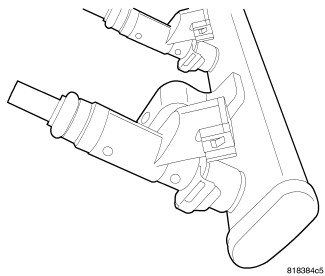

Fig 1: Fuel Injector On Rail

Courtesy of CHRYSLER GROUP, LLC

The injectors are positioned in the intake manifold with the nozzle ends directly above the intake valve port.
