Ignition Switch

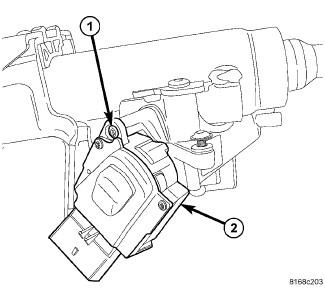

Fig 1: Ignition Switch Mounting Screw

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Lock cylinder housing removed from column.

Remove the ignition switch (2) mounting screw (1).

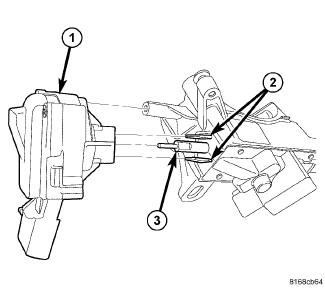

Fig 2: Ignition Switch & Retaining Tabs
Courtesy of CHRYSLER GROUP, LLC
Pull the switch (1) straight out and off the retaining tabs (2) located on the lock cylinder housing.
