Fan, Cooling: Installation: 3.0L
Courtesy of CHRYSLER GROUP, LLC
- Install the upper shroud cover (1). Apply pressure downwards until the cover snaps into place past clips (2).
- Install the cooling fan assembly into the vehicle.
- Guide the fan/shroud cover assembly into position between the radiator and upper core support.
Courtesy of CHRYSLER GROUP, LLC
- Position the cooling fan assembly onto the mounts (3) located on the radiator.
- Lock in the fan (1) assembly into place by pressing down firmly on the shroud till the locks (3) engage.
- Connect the electric fan electrical connector (2).
- Raise the vehicle.
- Install the lower cooling shroud cover by applying pressure till the cover snaps into place onto the cooling fan shroud.
- If equipped, install the lower engine cover.
- Lower the vehicle.
Courtesy of CHRYSLER GROUP, LLC

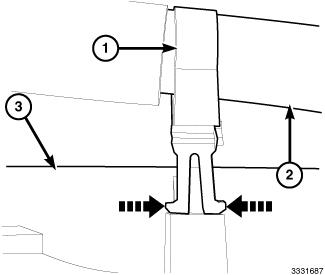

- Install the upper radiator hose (2) support clip (1) into the cooling fan shroud (3).
Courtesy of CHRYSLER GROUP, LLC

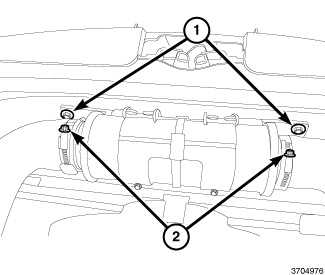

- Install the resonator mount bolts (1). Tighten the bolts to 10 N.m (89 in. lbs.).
Courtesy of CHRYSLER GROUP, LLC

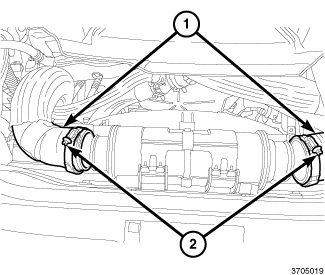

- Install the charge air hoses (1).
- Tighten the hose clamps (2).
- Connect the negative battery cable.
- Install the air intake assembly.
- Install the engine cover.
- Start the engine and check the fan operation.
