Sensor, Coolant Temperature: Installation: 3.0L

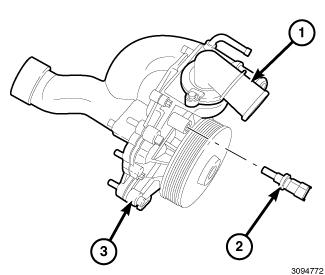

Fig 1: Temperature Sensor & Thermostat Housing

Courtesy of CHRYSLER GROUP, LLC

1. Apply MOPAR® thread sealant with PFTE to the sensor threads.
2. Install the coolant temperature sensor (2) into water pump housing (3).
3. Tighten the coolant temperature sensor to 11 N.m (8 ft. lbs.).
4. Connect the coolant temperature sensor electrical connector.
5. Install air intake system.
6. Replace any lost engine coolant. Refer to STANDARD PROCEDURE .
