Steering System: Pump: Installation: 2.8L-Diesel

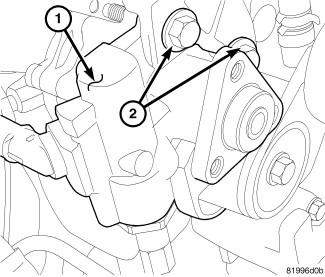

Fig 1: Mounting Bolts

Courtesy of CHRYSLER GROUP, LLC

1. Install the pump to the vehicle.
2. Install the three bolts (2) securing the pump (1) to the engine and tighten to 47 N.m (35 ft. lbs.).

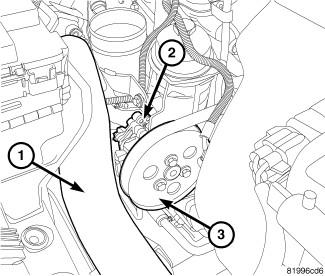

   Fig 2: Pump, Pulley, Hoses & Bolts - Diesel

   Courtesy of CHRYSLER GROUP, LLC
3. Install the power steering hoses (1 and 6). Tighten to 28 N.m (21 ft. lbs.).
4. Install the power steering pulley to the pump.
5. Install the three bolts (4) securing the pulley (3) to the pump (2).
6. Install the serpentine belt.

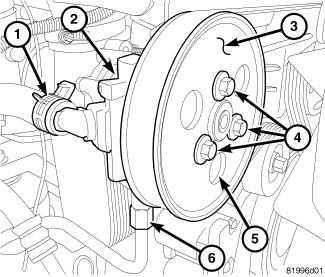

   Fig 3: Turbo Air Inlet Tube

   Courtesy of CHRYSLER GROUP, LLC
7. Install the air inlet tube (1).
8. Install the air cleaner box.
9. Refill the power steering fluid and bleed the system. Refer to STANDARD PROCEDURE .
