Pump, Water: Installation: 2.8L

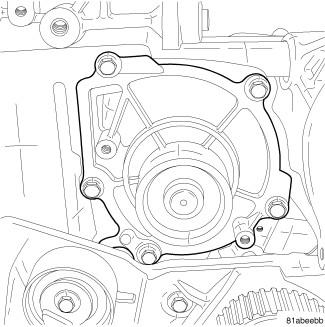

Fig 1: Water Pump & Bolts

Courtesy of CHRYSLER GROUP, LLC

Clean mating surfaces of water pump housing and engine block as necessary.
Place new O-ring in groove in water pump housing.
Install the water pump and the mounting bolts. Tighten the water pump bolts to 32 Nm (24 ft. lbs.)

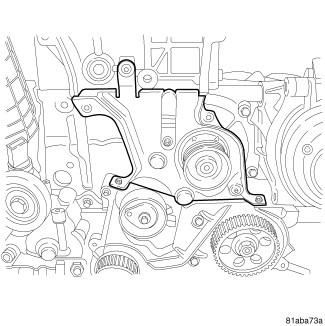

Fig 2: Inner Front Cover
Courtesy of CHRYSLER GROUP, LLC
Install the inner front cover.

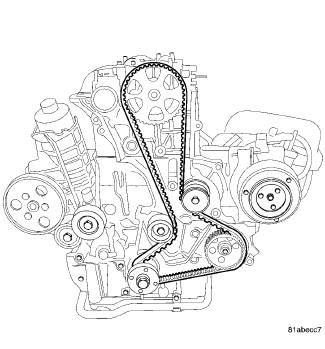

Fig 3: Timing Belt
Courtesy of CHRYSLER GROUP, LLC
Install the timing belt.

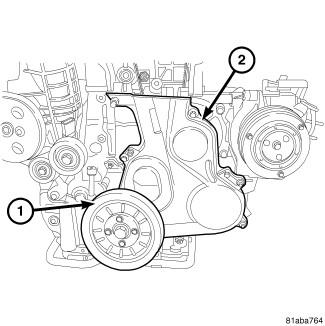

Fig 4: Lower Front Cover & Crankshaft Damper
Courtesy of CHRYSLER GROUP, LLC
Install the outer front cover (2).
Install the crankshaft damper (1).

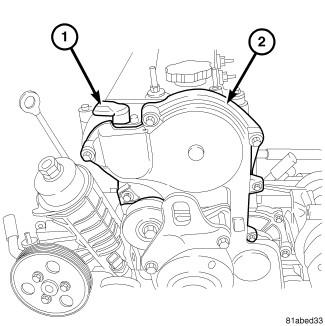

Fig 5: Upper Front Cover
Courtesy of CHRYSLER GROUP, LLC
Install the upper front cover (2).

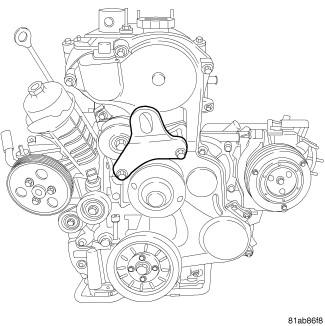

Fig 6: Front Lifting Bracket
Courtesy of CHRYSLER GROUP, LLC
Install the lifting bracket.
Install the fan. Refer to FAN, COOLING, INSTALLATION .
Evacuate air and refill cooling system. Refer to PUMP, WATER, STANDARD PROCEDURE .
Connect negative battery cable.
Check cooling system for leaks. Refer to DIAGNOSIS AND TESTING .
