Diesel Engine

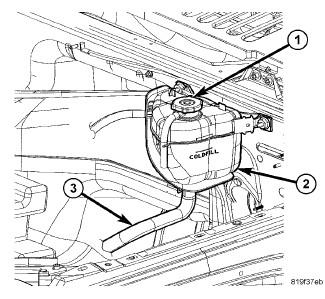

Fig 1: Coolant Recovery Container - Diesel
GC0130717Courtesy of CHRYSLER GROUP, LLC
  1. Position coolant recovery container (2).
  2. Install mounting nuts. Tighten to nuts 10 N.m (89 in. lbs.).
  3. Unplug and install coolant recovery tube (3).
  4. Fill the cooling system. Refer to STANDARD PROCEDURE .
  5. Install coolant recovery container pressure cap (1).
