Sensor, Coolant Temperature: Installation: 2.8L

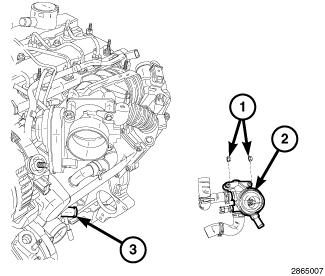

Fig 1: Thermostat Housing
GC0145357Courtesy of CHRYSLER GROUP, LLC
  1. Install coolant temperature sensor in thermostat housing. Tighten sensor to 11 N.m (8 ft. lbs.) torque.
  2. Install the thermostat housing onto engine. Refer to THERMOSTAT, INSTALLATION .
