Intake Manifold

INTAKE MANIFOLD

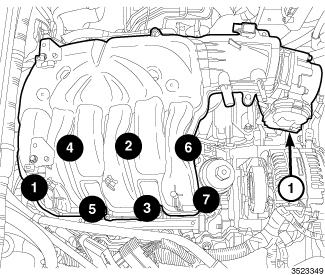

Intake Manifold (Upper) - M6 Bolts 8 Nm (71 in.lbs.)

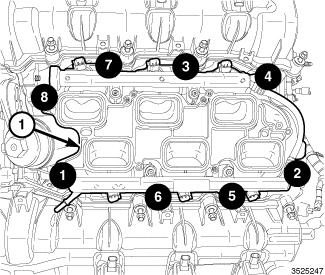

Intake Manifold (Lower) - M6 Bolts 8 Nm (71 in.lbs.)


Left Rear Upper Intake Manifold Support Bracket to Upper Intake Manifold - M6 Nuts 10 Nm (89 in.lbs.)

Left Rear Upper Intake Manifold Support Bracket to Cylinder Head - M8 Studbolts 20 Nm (177 in.lbs.)

Left Front Upper Intake Manifold Support Bracket to Upper Intake Manifold - M6 Nuts 10 Nm (89 in.lbs.)

Left Front Upper Intake Manifold Support Bracket to Cylinder Head - M6 Bolts 10 Nm (89 in.lbs.)

Right Upper Intake Manifold Support Bracket to Cylinder Head Cover Studbolts - M6 Nuts 10 Nm (89 in.lbs.)

Right Upper Intake Manifold Support Bracket to Upper Intake Manifold - M6 Bolts 8 Nm (71 in.lbs.)

Upper Intake Manifold Insulation Pad Brackets - Bolts 8 Nm (71 in.lbs.)
