P2112-Electronic Throttle Control - Unable To Open: Notes

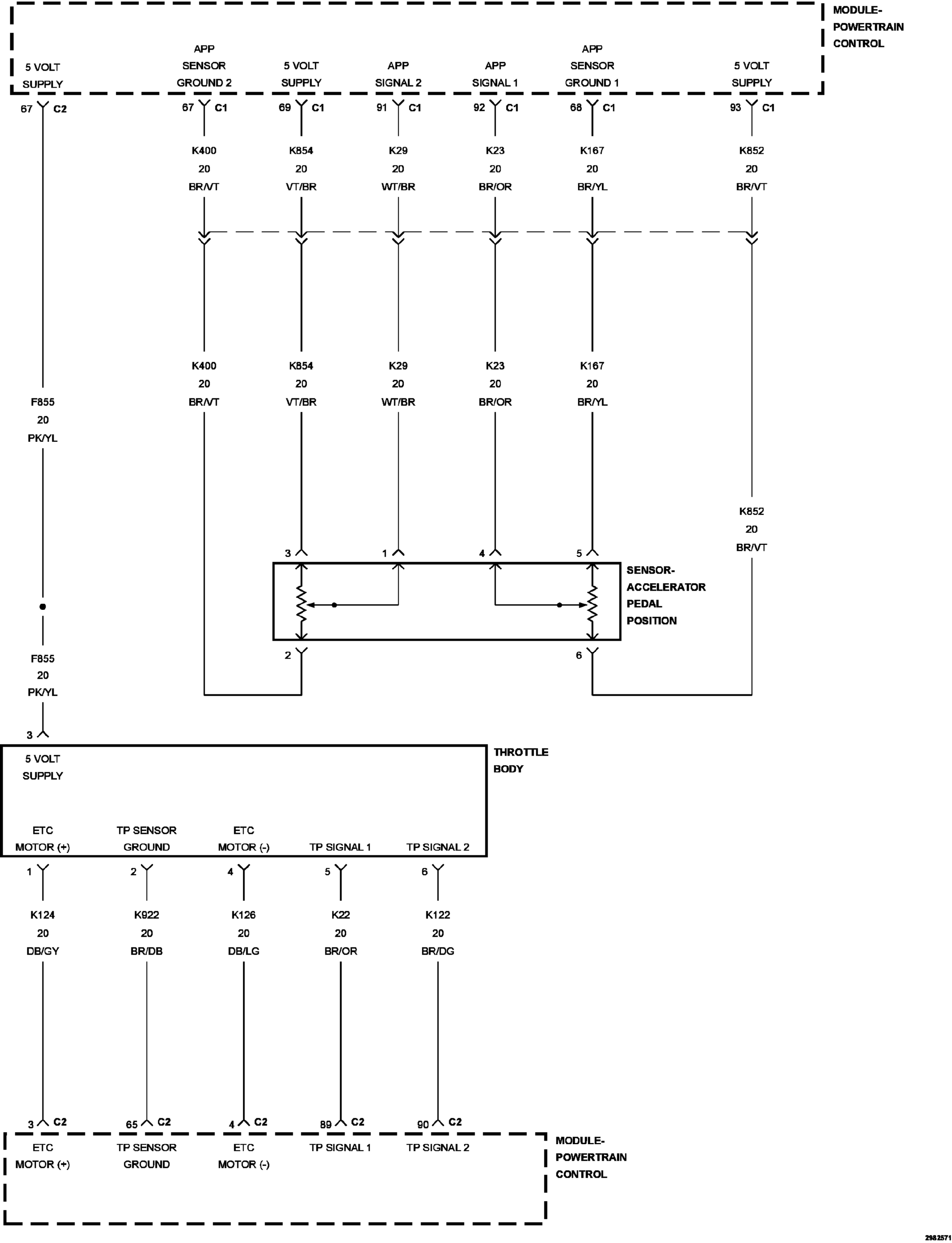

GC0149276Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, Refer To The Wiring Information.  .
