Boost Pressure Sensor: Removal: Removal

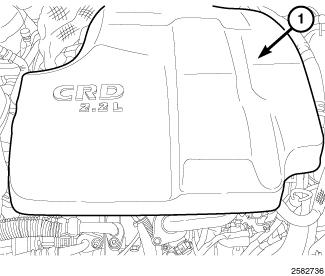

Fig 1: Engine Cover
GC0137871Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Remove the engine cover (1).
    Fig 2: Mixing Chamber, Harness Connector, Boost Pressure Sensor & Bolts
    GC0138080Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the boost pressure sensor wire harness connector (2).
  4. Remove bolts (4) and the boost pressure sensor (3) from the mixing chamber (1).
