Diesel Engine

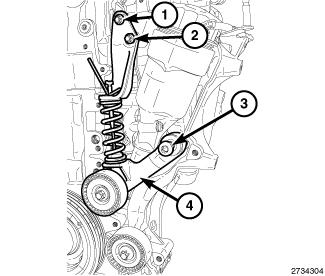

Fig 1: Tensioner Bracket Mounting Bolts
GC0137781Courtesy of CHRYSLER GROUP, LLC
  1. Install tensioner pulley and bolt, if removed. Tighten bolt to 25 N.m (18 ft. lbs.).
  2. From underneath the vehicle, position the belt tensioner assembly (4) onto the engine.
  3. Install the lower bolt (3) into the accessory drive bracket to assist in holding the tensioner assembly (4) in place. Hand tighten the bolt.
  4. Lower the vehicle.
  5. Install the upper belt tensioner bolts (1, 2) to the accessory drive bracket. Tighten the bolts to 20 N.m (15 ft. lbs.).
  6. Tighten the lower belt tensioner bolt to 45 N.m (33 ft. lbs.).
  7. Install the accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
