Module, Fuel Pump: Description: Description: Notes
NOTE:

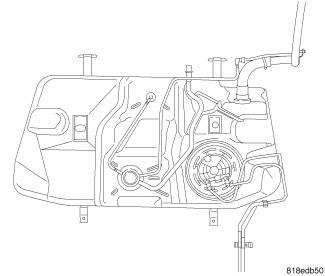

Front Wheel Drive (FWD) fuel tank shown in illustration, All Wheel Drive (AWD) fuel tank similar.
On Front Wheel Drive (FWD) vehicles the fuel pump module is located on the top left side of the fuel tank. All Wheel Drive (AWD) vehicles have a saddle style fuel tank that has a reservoir on both sides of the driveshaft. The primary fuel pump module is located on the top left side of the fuel tank and the secondary fuel pump module is located on the top right side of the fuel tank.
