Spark Plug: Installation: Installation

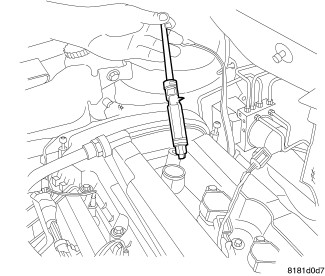

Fig 1: Removing/Installing Spark Plug

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Handle the spark plugs with care. Do not drop or force the spark plugs into the wells, damage to the electrodes and/or porcelain body may occur. Always start each spark plug by hand in order to avoid cross-threading the spark plug in the cylinder head.

Always tighten spark plugs to the specified torque. Too much or not enough torque will cause damage to the cylinder head and/or spark plug and may lead to poor engine performance.

Install each spark plug to the cylinder head. Tighten spark plugs to 27 N.m (20 ft. lbs.).

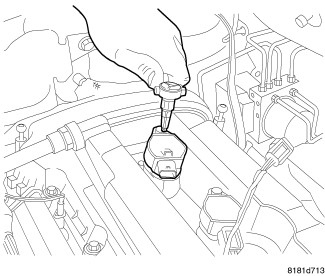

Fig 2: Removing/Installing Ignition Coil
Courtesy of CHRYSLER GROUP, LLC
Install ignition coil onto spark plug.

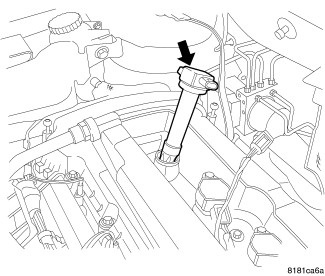

Fig 3: Ignition Coil Bolt
Courtesy of CHRYSLER GROUP, LLC
Install ignition coil mounting bolt. Tighten to 9 N.m (79.5 in. lbs.).
Connect ignition coil electrical connectors.
Connect the negative battery cable.
