Sensor, Fuel Tank Pressure: Removal: Removal

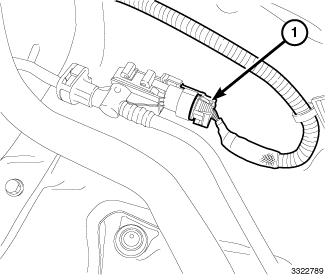

Fig 1: Fuel Tank Pressure Sensor Electrical Connector

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The Fuel Tank Pressure sensor is located under the rear of the vehicle, and is integrated in the vent tube coming from the fuel pump module.

Disconnect and isolate the negative battery cable.
Remove the fuel filler cap to relieve tank pressure.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Disconnect the fuel tank pressure sensor electrical connector (1).

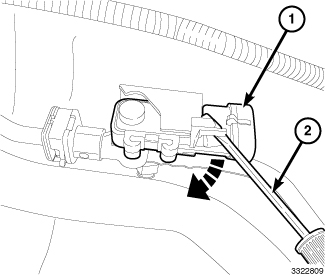

Fig 2: Removing Fuel Tank Pressure Sensor
Courtesy of CHRYSLER GROUP, LLC
Carefully raise the retaining tab (2), rotate and remove the fuel tank pressure sensor (1) from the fuel tank vent tube.

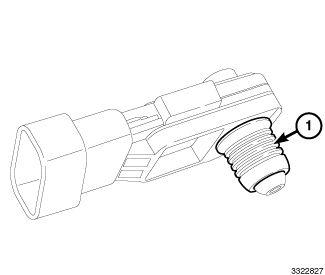

Fig 3: Fuel Tank Pressure Sensor Seal
Courtesy of CHRYSLER GROUP, LLC
The fuel tank pressure sensor seal (1) can be reused if not damaged.
