Diesel 2.2L - Installation

Fig 1: Lower, Fan Blade Retaining Nut & Fan Motor

Courtesy of CHRYSLER GROUP, LLC

Install the fan motor (5) onto shroud (3).
Install the fan (6) onto the motor (5).
Install the lower shroud seal (8).

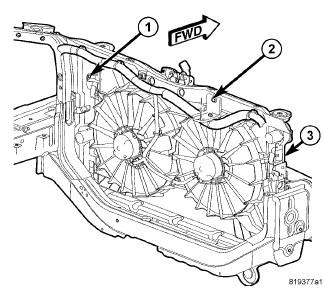

Fig 2: Radiator Fan Assembly
Courtesy of CHRYSLER GROUP, LLC
Install the radiator fan module (1).
Connect the radiator fan wire harness connectors.
Install upper radiator hose.
Install the wiring harness mounting retainers into fan shroud.

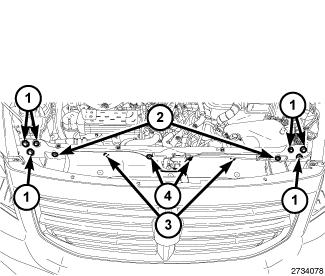

Fig 3: Upper Core Support Seal Push Pins & Radiator Core Support Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the upper radiator core support. Tighten outer bolts (1) to 23 N.m (17 ft. lbs.). Tighten the inner support bolts (1) to 8 N.m (6 ft. lbs.).
Install the hood latch cable.
Install the core support seal (3).

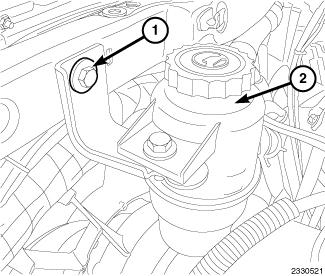

Fig 4: Power Steering Fluid Reservoir & Mounting Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the power steering reservoir (2). Tighten bolt (1) to 12 N.m (9 in. lbs.).

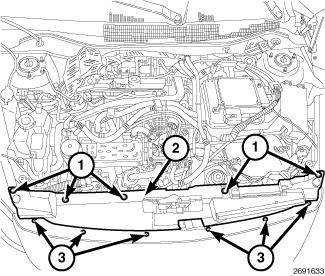

Fig 5: Upper Radiator Closure Panel
Courtesy of CHRYSLER GROUP, LLC
Install radiator closure panel (2). Refer to PANEL, CLOSURE, UPPER, INSTALLATION .
Top coolant off. Refer to STANDARD PROCEDURE .
