Gas Engine

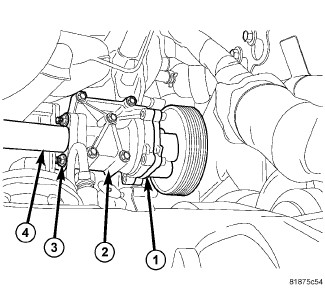

| 1 - WATER PUMP |
| 2 - MOUNTING BOLT |
| 3 - WATER INLET TUBE NUTS |
| 4 - INLET WATER TUBE |
- Position water pump assembly (1) and gasket onto cylinder block.
- Position water inlet tube (4) and gasket onto water pump (1).
- Install mounting bolts (2). Tighten bolts to 24 N.m (18 ft. lbs.).
- Install drive belt splash shield.
- Lower vehicle.
- Install accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
- Evacuate air and refill cooling system. Refer to STANDARD PROCEDURE .
- Check cooling system for leaks. Refer to DIAGNOSIS AND TESTING .
