Inlet Temperature Sensor

Fig 1: Engine Cover

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Remove the engine cover (1).

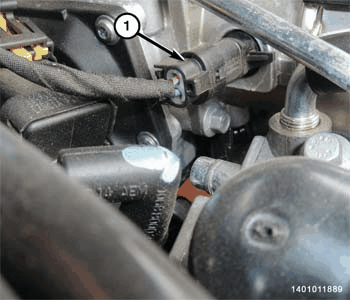

Fig 2: Inlet Air Temperature Sensor Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the inlet air temperature sensor wire harness connector (1).

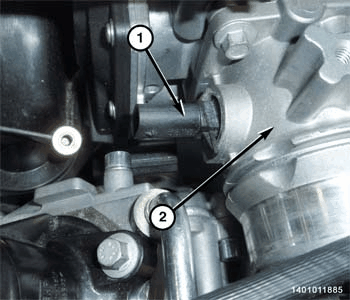

Fig 3: Air Inlet Temperature Sensor
Courtesy of CHRYSLER GROUP, LLC
Turn counter clockwise 1/4 turn and remove the inlet air temperature sensor (2).
