Sensor, Camshaft Position: Installation: Installation

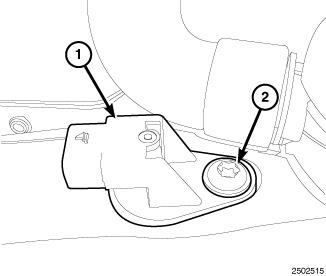

Fig 1: Cam Position Sensor & Retaining Bolt

Courtesy of CHRYSLER GROUP, LLC

1. Install the camshaft position sensor (1). Tighten bolt (2) to 6 N.m (53 in. lbs.).

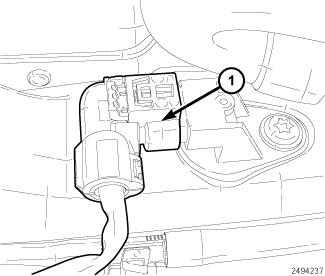

   Fig 2: Camshaft Position Sensor Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
2. Connect the cam position sensor wire harness connector (1).
   Fig 3: Engine Cover

   Courtesy of CHRYSLER GROUP, LLC
3. Install the engine cover (1).
4. Connect the negative battery cable.
