Sensor, Air Temperature, Inlet: Installation: Installation

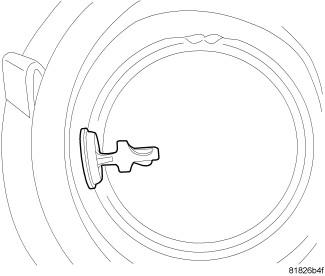

Fig 1: Sensor Orientation

Courtesy of CHRYSLER GROUP, LLC

1. Install inlet air temperature sensor into the clean air duct.

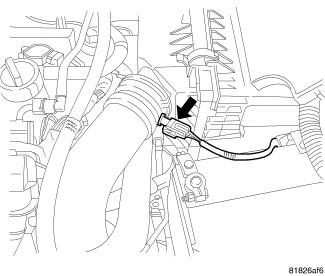

   Fig 2: Inlet Air Temperature Sensor

   Courtesy of CHRYSLER GROUP, LLC
2. Connect electrical connector to sensor.
3. Connect the negative battery cable.
