Module, Glow Plug: Removal: Removal

  1. Disconnect the negative battery cable.
  2. Remove the air cleaner assembly.
  3. Disconnect the fuel lines.
    Fig 1: Identifying Glow Plug Harness Connector, Glow Plug Module & Power Supply Harness Connector
    GC0138477Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the glow plug harness connector (1).
  5. Disconnect the power supply harness connector (3) from the glow plug module (2).

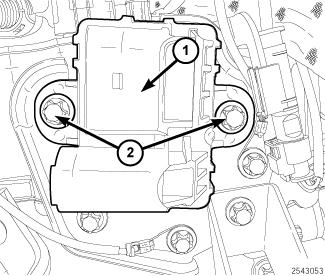

    Fig 2: Identifying Glow Plug Module & Bolts
    GC0138478Courtesy of CHRYSLER GROUP, LLC
  6. Remove the bolts (2) and the glow plug module (1).
