DRAINCOCK, Radiator: Installation: Installation

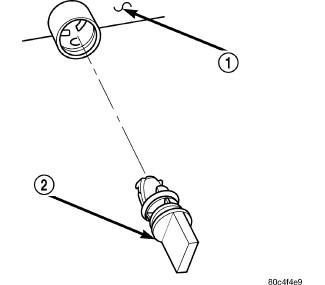

Fig 1: Draincock

Courtesy of CHRYSLER GROUP, LLC

1 - RADIATOR TANK

2 - DRAINCOCK

1. Align draincock stem to radiator tank opening.
2. Push draincock (2) into the radiator tank opening.
3. Tighten the draincock (2) by turning clockwise until it stops.
4. Fill the cooling system. Refer to STANDARD PROCEDURE .
5. Install front passenger side splash shield assembly to the wheelhouse area. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .
6. Install the front passenger side wheel. Refer to INSTALLATION .
