Module, Power Inverter: Installation: Installation

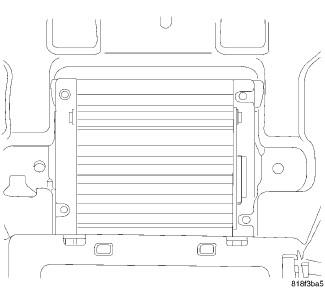

Fig 1: Locating Inverter Module

Courtesy of CHRYSLER GROUP, LLC

1. Connect the electrical connectors to the inverter module.
2. Install the fasteners to the mounting brackets.
3. Install the center bezel to the instrument panel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
4. Install the shift bezel. Refer to BEZEL, SHIFTER, INSTALLATION .
5. Connect the battery negative cable.
