Sensor, Fuel Temperature: Installation: Installation

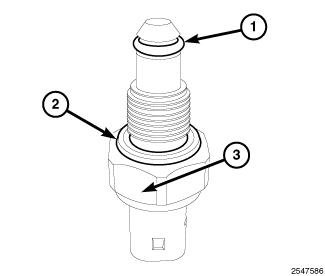

Fig 1: O-Ring Seal & Sealing Washer

Courtesy of CHRYSLER GROUP, LLC

1. Replace the O-ring seal (1) and sealing washer (2).

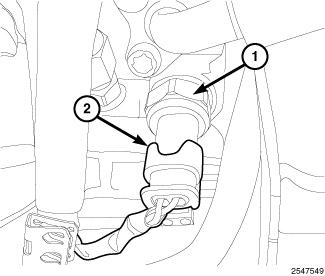

   Fig 2: Fuel Temperature Sensor Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
2. Install the fuel temperature sensor (1). Tighten to 15 N.m (133 in. lbs.).
3. Connect the fuel temperature sensor wire harness connector (2).

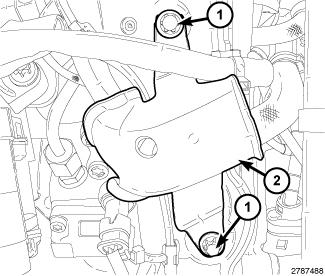

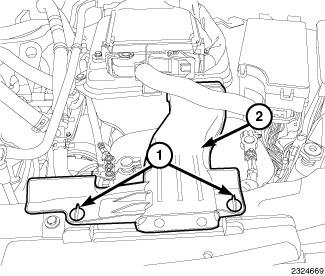

   Fig 3: Identifying Bolts & Heat Shield

   Courtesy of CHRYSLER GROUP, LLC
4. Install the heat shield (2). Tighten bolts (1) to 9 N.m (80 in. lbs.).
   Fig 4: Power Steering Fluid Reservoir & Mounting Bolt

   Courtesy of CHRYSLER GROUP, LLC
5. Install coolant fan assembly. Refer to FAN, COOLING, INSTALLATION .
6. Install the power steering reservoir (2). Tighten bolt (1) to 12 N.m (106 in. lbs.).
   Fig 5: Upper Radiator Closure Panel

   Courtesy of CHRYSLER GROUP, LLC
7. Install the radiator closure panel (2) and securely tighten the bolts (1), screws (3).
   Fig 6: Quarter Turn Lock Tabs & Air Inlet Duct

   Courtesy of CHRYSLER GROUP, LLC
8. Install the air inlet duct (1).
9. Connect the negative battery cable.
   Fig 7: Engine Cover

   Courtesy of CHRYSLER GROUP, LLC
10. Install the engine cover (1).
