Sensor, Knock: Installation: Installation

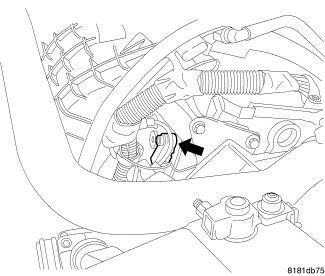

Fig 1: Knock Sensor Location

Courtesy of CHRYSLER GROUP, LLC

The knock sensor bolts into the side of the cylinder block in front of the starter under the intake manifold.

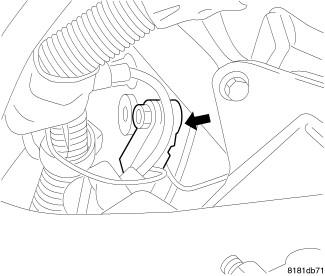

Fig 2: Knock Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Attach electrical connector to knock sensor.
2. Install knock sensor. Tighten knock sensor bolt to 20 N.m (177 in. lbs.). Over or under tightening effects knock sensor performance, possibly causing improper spark control.
3. Connect the negative battery cable.
