Module, Steering Column Control: Removal: Removal: Disassembly

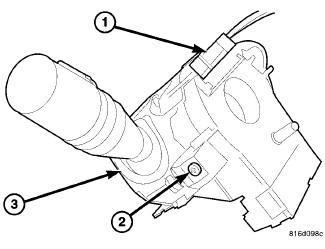

Fig 1: Removing/Installing Left Multi-Function Switch Stalk Retaining Screw

Courtesy of CHRYSLER GROUP, LLC

1. Remove the left multi-function switch stalk retaining screw (2).
2. Pull the left stalk out of the SCCM.

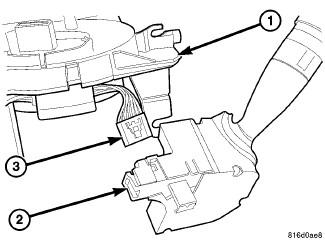

   Fig 2: Disconnecting/Connecting Left Stalk Electrical Connector

   Courtesy of CHRYSLER GROUP, LLC
3. Disconnect the left stalk electrical connector.
4. Separate the left switch from the SCCM.

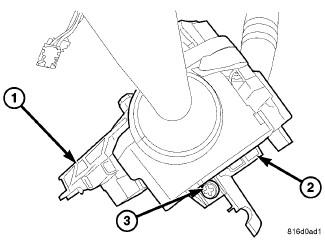

   Fig 3: Identifying Right Multi-Function Switch Retaining Screw

   Courtesy of CHRYSLER GROUP, LLC
5. Remove the one right multi-function switch retaining screw.
6. Pull right switch out of SCCM.

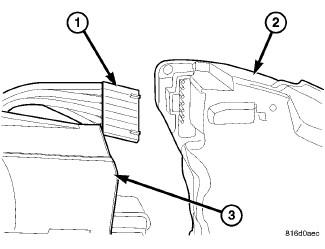

   Fig 4: Identifying Jumper Wire Harness Connector, Right Multi-Function Switch & Clockspring

   Courtesy of CHRYSLER GROUP, LLC
7. Disconnect the right switch electrical connector.
