Gas Engine

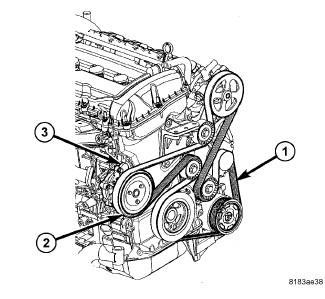

Fig 1: Water Pump - World Engine

Courtesy of CHRYSLER GROUP, LLC

1 - ACCESSORY DRIVE BELT

2 - WATER PUMP PULLEY

3 - WATER PUMP

The water pump (3) on the world engine is attached to the water pump adapter on the front of the cylinder block.

The water pump is driven by the accessory drive belt. The water pump is connected to the water plenum by the return tube.

Turbocharger equipped engines use a smaller diameter water pump pulley then the naturally asperated engine. This allows increased coolant flow without pump cavation.
