Sensor, Coolant Temperature: Installation: 2.8L

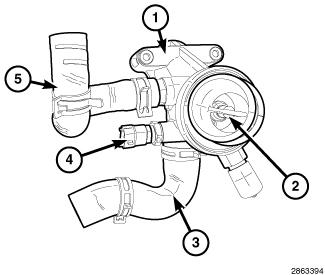

Fig 1: Lower Bypass Hose, EGR Cooler Supply Line & Temperature Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Install coolant temperature sensor (4) in thermostat housing (1). Tighten sensor (4) to 11 N.m (8 ft. lbs.).
   Fig 2: Thermostat Housing

   Courtesy of CHRYSLER GROUP, LLC
2. Install the thermostat housing (2) onto engine. Refer to THERMOSTAT, INSTALLATION .
