Sensor, Fuel Tank Pressure: Removal
- Disconnect and isolate the negative battery cable.
- Remove the fuel filler cap to relieve tank pressure.
- Raise and support the vehicle. Refer to HOISTING RECOMMENDATIONS .

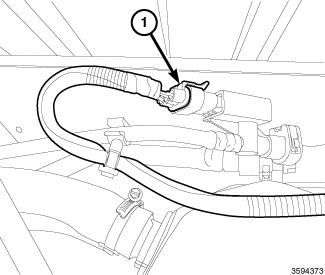

- Disconnect the fuel tank pressure sensor electrical connector (1).
- Carefully raise the retaining tab (2), rotate and remove the fuel tank pressure sensor (1) from the fuel tank vent tube.
- The fuel tank pressure sensor seal (1) can be reused if not damaged.
