Drive, Fan: Installation

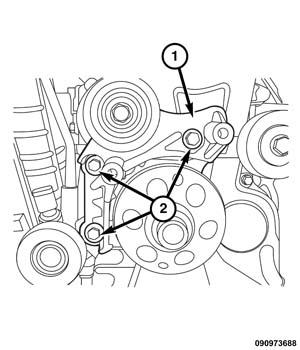

GC0155092Courtesy of CHRYSLER GROUP, LLC
  1. Install the fan drive assembly. Tighten the bolts to 45 N.m (33 ft. lbs.).
  2. Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
  3. Install the viscous cooling fan. Refer to FAN, COOLING, INSTALLATION .
  4. Connect the negative battery cable.
