Fan, Cooling: Installation: Gas

GC0148195Courtesy of CHRYSLER GROUP, LLC
  1. Position fan assembly into the lower support mounts.
  2. Install the upper fan mounting bolts (4). Tighten the bolts to 5 N.m (44 in. lbs.).
  3. Install the upper fan seal.

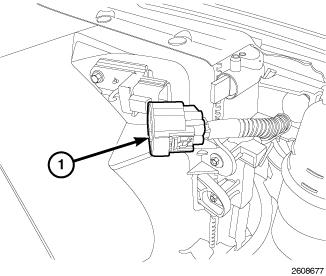

    GC0130722Courtesy of CHRYSLER GROUP, LLC
  4. Connect the electric fan jumper harness (1) at the fan.
  5. Install the coolant recovery bottle and the hose.
  6. Install the air filter lid.
  7. Connect the negative battery cable.
