Heater, Engine Block: Installation

GC0144482Courtesy of CHRYSLER GROUP, LLC
  1. Thoroughly clean core hole and heater seat.
  2. Install the engine block heater (1) into the engine block. Tighten the bolt (2) 12 N.m (106 in. lbs.).
  3. Connect the power cord to the engine block heater.

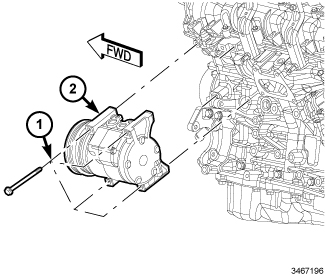

    GC0153970Courtesy of CHRYSLER GROUP, LLC
  4. Position the A/C compressor (2) to the engine block. Tighten the bolts (1) to 28 N.m (21 ft. lbs.).
  5. Reconnect the A/C compressor (2) wire harness connector.
    GC0153982Courtesy of CHRYSLER GROUP, LLC
  6. Install the serpentine belt.

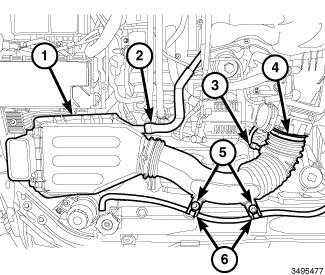

    GC0154000Courtesy of CHRYSLER GROUP, LLC
  7. Install the air filter housing cover (1).
  8. Install the air intake support bolts (5).
  9. Install the air intake hose to the throttle body (4) and tighten the clamp.
  10. Reconnect the temperature sensor electrical sensor connector (3).
  11. Install the air breather tube (2).
  12. Reconnect the negative battery cable.
  13. Install the engine cover.
