Gas Engine
CAUTION:
Before installing the radiator or A/C condenser, be sure the radiator-to-body and radiator-to-A/C condenser rubber air seals are properly fastened to their original positions. These are used at the top, bottom and sides of the radiator and A/C condenser. To prevent overheating, these seals must be installed to their original positions.
- Install the A/C condenser (2) onto the radiator (1). Tighten the bolts (3) to 5 N.m (44 in. lbs.).
- Install the transmission cooler (5). Tighten the bolts (4) to 8 N.m (71 in. lbs.).
- Install the radiator into the vehicle.

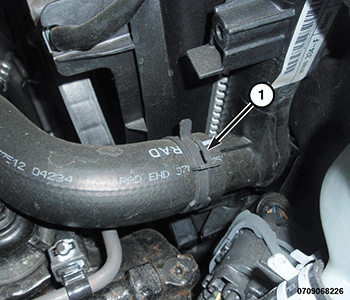

- Install the lower radiator hose (1).
- Position the lower cooling fan tabs onto the mounts located on the radiator (4).
- Install the cooling fan shroud bolts and tighten to 5 N.m (44 in. lbs.).
- Connect the cooling fan wire harness connector (3).
- Install the upper radiator seal (2) and fasteners.

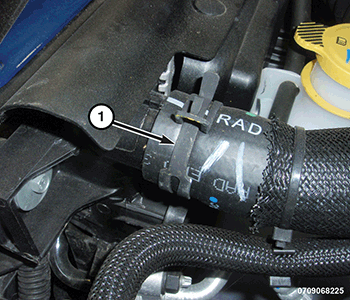

- Install the upper radiator hose (1).
- Install the coolant recovery bottle onto the fan shroud.
- Install the coolant recovery bottle hose onto fan shroud and radiator.
- On automatic transmission models, install the transmission cooler lines (3). Tighten the bolt (1) to 8 N.m (70 in. lbs.).
- Install the bolt securing the A/C condenser lines to radiator and tighten to 5 N.m (44 in. lbs.).
- Install the A/C lines (2, 4) to the condenser. Tighten nuts (3, 5) to 23 N.m (17 ft. lbs.).
- Install the right and left side air deflectors and push pin fasteners.
- Evacuate and charge the A/C system. Refer to PLUMBING, STANDARD PROCEDURE .
- Fill the cooling system with correct coolant. Refer to COOLANT FILL VOLUMES .
- Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
- Connect the battery negative cable.
- Start engine and check for leaks.
