Quick Connect Fitting Disassembly/Assembly: Connect

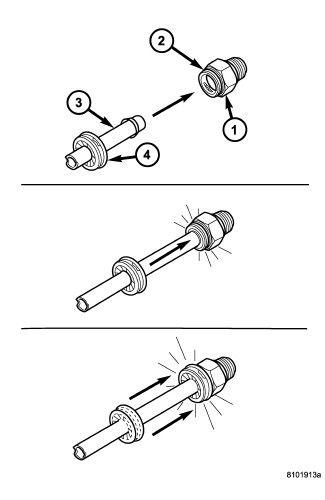

| 1 - QUICK CONNECT FITTING |
| 2 - CLIP |
| 3 - OIL COOLER LINE |
| 4 - DUST CAP |
- If removed, install the quick connect fitting into the transmission oil cooler or the transmission. Tighten the fitting to 15 N.m (132 in. lbs.).
- Align the cooler line (3) with the quick connect fitting while pushing straight into the fitting.
- Push in on the transmission cooler line until a clickis heard or felt.
- Slide the dust cap (4) down the transmission cooler line and snap it over the quick connect fitting until it is fully seated and rotates freely. The dust cap will only snap over the quick connect fitting when the transmission cooler line is properly installed.
NOTE:
If the dust cap will not snap into place, repeat step 2.
