Sensor, Accelerator Pedal Position: Removal

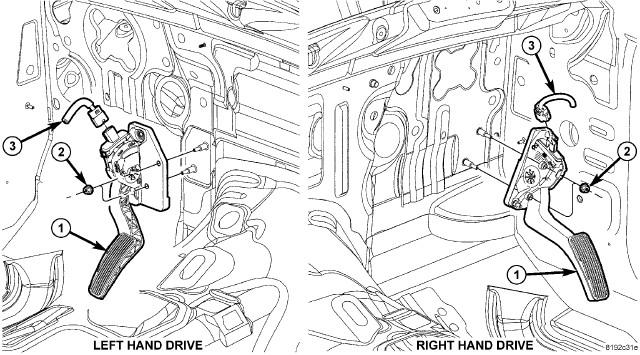

GC0085648Courtesy of CHRYSLER GROUP, LLC
NOTE:

The accelerator pedal and APPS (Accelerator Pedal Position Sensor) are serviced as a complete assembly including the bracket.

  1. Disconnect and isolate the negative battery cable.
  2. Disconnect the APPS wire harness connector (3).
  3. Remove the two nuts (2) and APPS assembly (1) from vehicle.
