Sensor, Oxygen: Installation

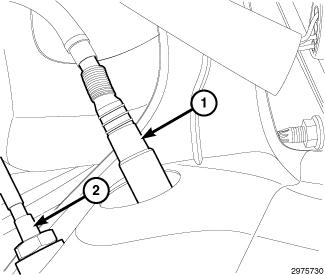

GC0148213Courtesy of CHRYSLER GROUP, LLC
  1. Install the oxygen sensor (1) and tighten to 50 N.m (37 ft. lbs.).
  2. Install the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, WHEELHOUSE, INSTALLATION .
  3. Remove support and lower the vehicle.

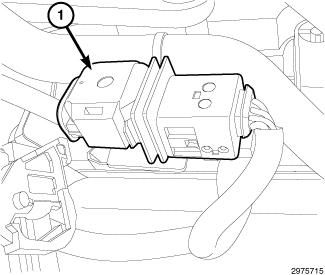

    GC0148212Courtesy of CHRYSLER GROUP, LLC
  4. Connect the oxygen sensor wire harness connector (1).
  5. Connect the negative battery cable.
