Removal And Installation

REMOVAL

1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

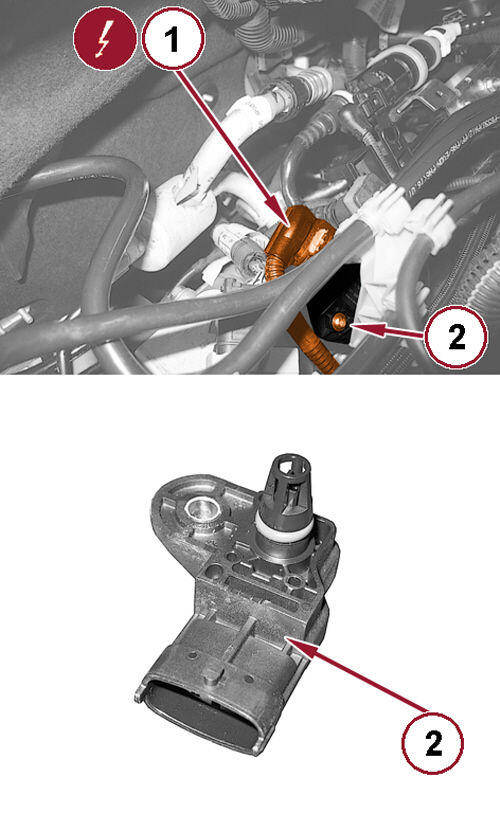

2. Disconnect the wire harness connector from the manifold pressure and intake air temperature sensor (1).
3. Remove the manifold pressure and intake air temperature sensor mounting fastener (2).
4. Remove the manifold pressure and intake air temperature sensor (2).

INSTALLATION

1. Install the manifold pressure and intake air temperature sensor and securely tighten the retaining screw.
2. Connect the wire harness connector to the manifold pressure and temperature air sensor.
3. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
