Removal And Installation - 1.4L: Removal

Disconnect and isolate the negative battery cable.
Remove the ignition coil. Refer to COIL, IGNITION, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Prior to removing the spark plug, spray compressed air into the cylinder head opening. This will help prevent foreign material from entering the combustion chamber.

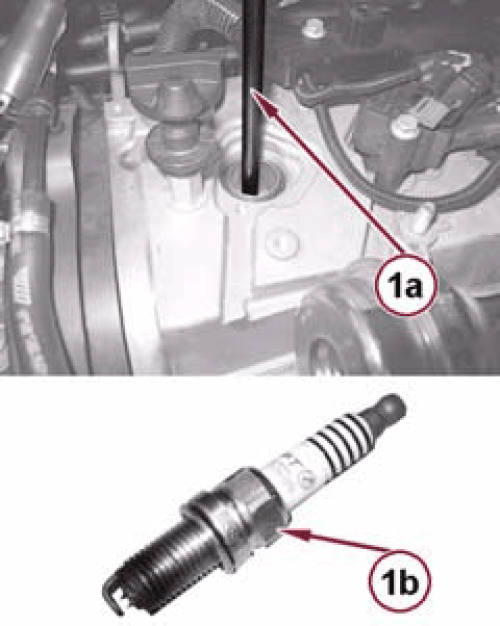

Using the appropriate socket (1a), unscrew and remove the spark plug (1b).

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
The spark plug tubes (1) are a thin wall design. Avoid damaging the spark plug tubes. Damage to the spark plug tube can result in oil leaks.
If required, replace the spark plug tube. .
