2.0L Diesel: Removal

1. Disconnect and isolate the negative battery cable.
2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
3. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
4. Drain the cooling system. Refer to STANDARD PROCEDURE .
5. Remove the timing belt. .

   Courtesy of CHRYSLER GROUP, LLC

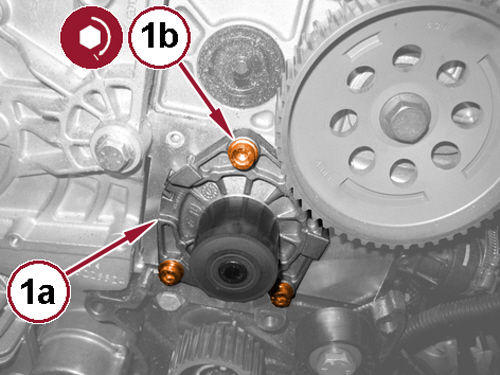

6. Remove the bolts (1a) and the water pump (1b).
7. Remove and discard the water pump gasket.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

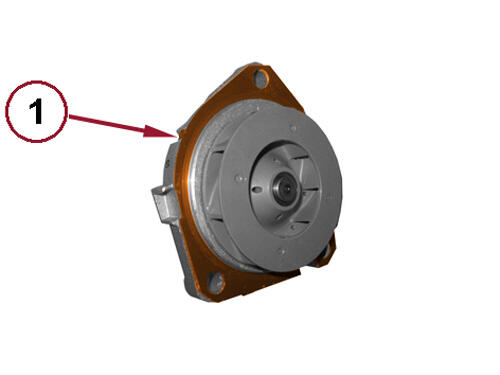

1. Install a NEW  gasket seal on the water pump by folding the retaining tabs (1).

   Courtesy of CHRYSLER GROUP, LLC

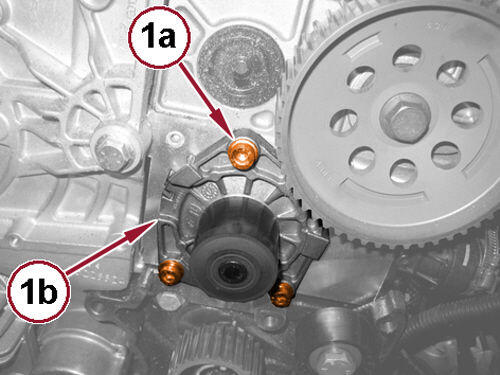

2. Install the water pump (1a). Tighten the bolts (1b) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
3. Install the timing belt. .
4. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
5. Remove the support and lower the vehicle.
6. Evacuate the air and fill the cooling system. Refer to STANDARD PROCEDURE .
7. Connect the negative battery cable.
8. Check cooling system for leaks. Refer to DIAGNOSIS AND TESTING .
