Sensor, Crankshaft Position: Installation

GC0146603Courtesy of CHRYSLER GROUP, LLC
  1. Clean the area and bore around Crankshaft Position (CKP) sensor.
  2. Install the CKP sensor (2). Tighten the bolt (1) to 6 N.m (53 in. lbs.).
    GC0146606Courtesy of CHRYSLER GROUP, LLC
  3. Install the bolts (1) attaching the harness connector bracket (2) to oil pan and tighten to 8 N.m (71 in. lbs.).

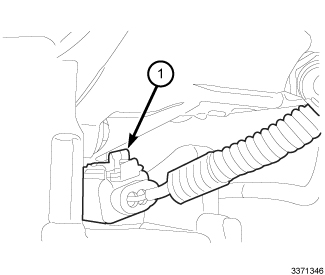

    GC0146607Courtesy of CHRYSLER GROUP, LLC
  4. Connect the CKP sensor wire harness connector (1).
  5. Install the flex plate. Refer to FLEXPLATE, INSTALLATION .
  6. Connect the negative battery cable.
