Sensor, Crankshaft Position: Description

Courtesy of CHRYSLER GROUP, LLC

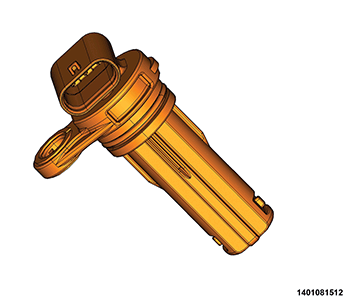

The Crankshaft Position (CKP) sensor is mounted into the right rear side of the cylinder block. It is positioned and bolted into a machined hole.
