Valve, Short Runner: Installation

Courtesy of CHRYSLER GROUP, LLC

NOTE:

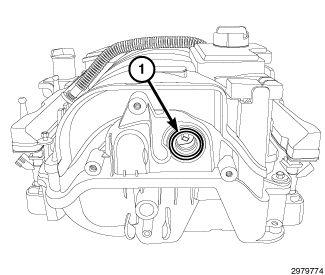

Do not reuse the old Short Runner Valve (SRV) actuator O-ring seal (1).

Install a new SRV actuator rubber O-ring seal (1).

Courtesy of CHRYSLER GROUP, LLC

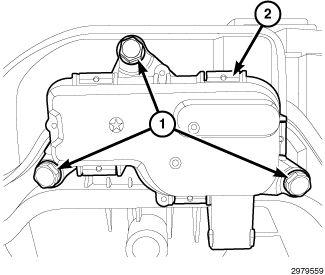

Install the SRV actuator (2). tighten bolts (1) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
Install the intake manifold. Refer to MANIFOLD, INTAKE, INSTALLATION .
Connect the negative battery cable.
