Capacitor, Ignition: Installation: 3.6L

GC0144203Courtesy of CHRYSLER GROUP, LLC
  1. Install the ignition capacitor (2) and bolt (3), then tighten the bolt to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
  2. Connect the ignition capacitor electrical connector (1).

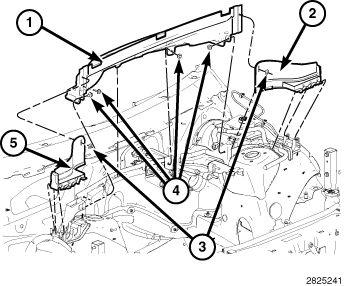

    GC0145586Courtesy of CHRYSLER GROUP, LLC
  3. Install the cowl extension silencer (1). Refer to SILENCER, COWL EXTENSION, INSTALLATION .
  4. Connect the negative battery cable.
