Sensor, Fuel Tank Pressure: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the fuel tank. Refer to TANK, FUEL, REMOVAL .

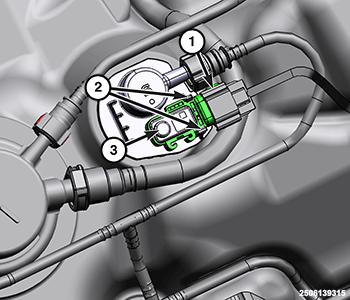

    GC0175211Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the fuel tank pressure sensor wire harness connector (1).
  4. Remove the fuel tank pressure sensor (3) from the fuel tank by spreading the tabs (2) and lifting straight up.
    GC0145300Courtesy of CHRYSLER GROUP, LLC
  5. The fuel tank pressure sensor seal (1) can be reused if not damaged.
