Removal And Installation

REMOVAL

1. Remove the exhaust muffler. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

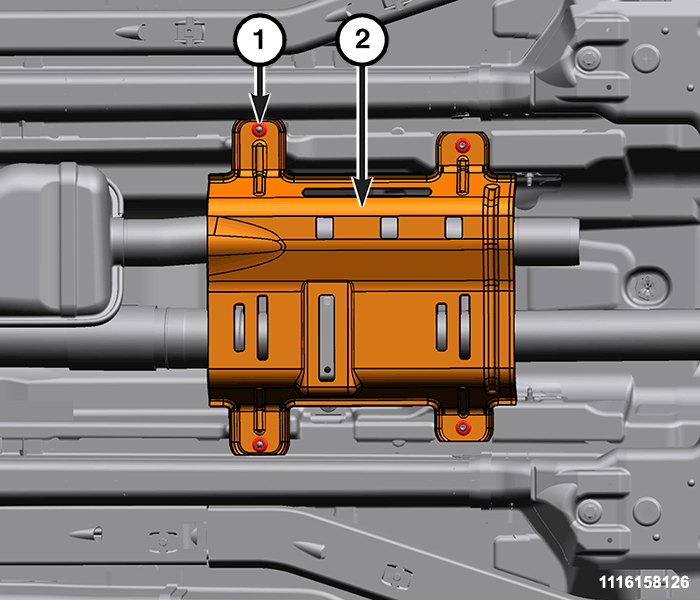

2. Remove the nuts (1) and the propeller shaft shield (2).

   Courtesy of CHRYSLER GROUP, LLC

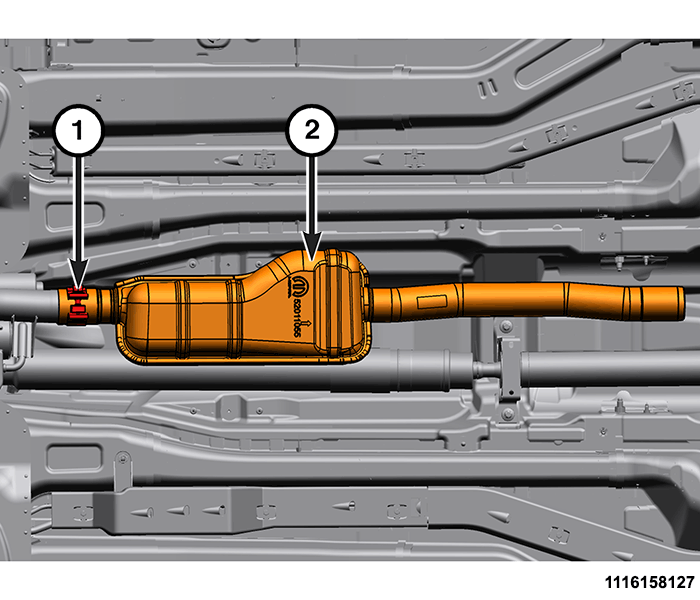

3. Loosen the clamp nut (1) and remove the exhaust resonator (2).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Install the exhaust resonator (2) and tighten the clamp nut (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

2. Install the propeller shaft shield (2) and tighten the nuts (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
3. Install the exhaust muffler. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .
