Throttle Body: Installation: 3.6L
- Clean the mating surfaces of the throttle body and intake manifold.

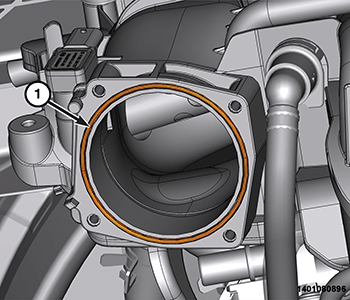

- Install a NEW
O-ring seal onto the intake manifold.

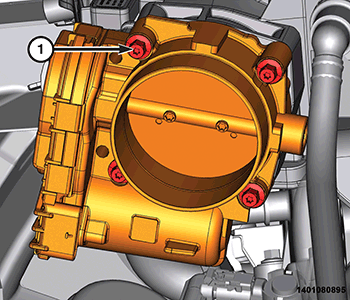

- Install the throttle body and tighten the four bolts (1) in a criss-cross pattern sequence to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

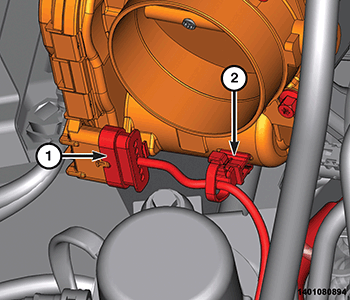

- Connect the throttle body wire harness connector (1) and secure the wire harness to the clip (2) on the throttle body.
- Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
- Connect the negative battery cable.
