Rear Knock Sensor

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect and isolate the negative battery cable.
3. Remove the engine starter. Refer to STARTER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

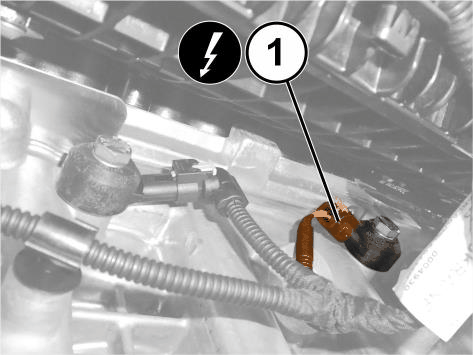

4. Disconnect the knock sensor wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

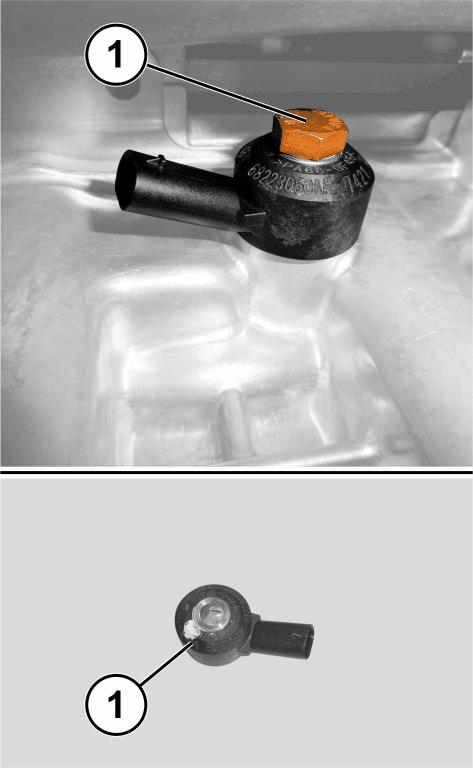

5. Remove the bolt and the knock sensor (1).

INSTALLATION

1. Install the knock sensor and tighten the NEW  bolt to the proper specification. Refer to TORQUE SPECIFICATIONS .
2. Connect the knock sensor wire harness connector.
3. Install the engine starter. Refer to STARTER, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
5. Remove the support and lower the vehicle.
