Standard Procedure - Hoisting

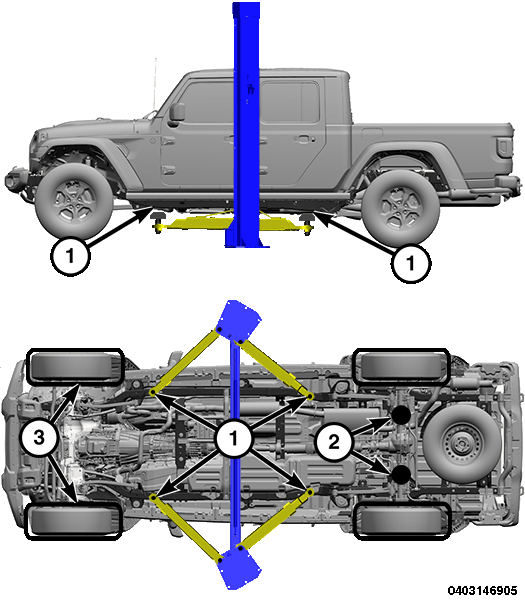

| 1 - FRAME CONTACT LIFT (SINGLE POST) |
| 1 - CHASSIS LIFT (DUAL LIFT) |
| 1 - OUTBOARD LIFT (DUAL LIFT) |
| 2 - ALTERNATE LIFTING LOCATIONS |
| 2 - FLOOR JACK |
| 3 - DRIVE ON HOIST |
The hoisting and jack lifting points provided are for a complete vehicle. When a chassis or drivetrain component is removed from a vehicle, the center of gravity is altered making some hoisting conditions unstable. Properly support or secure vehicle to hoisting device when these conditions exist.
Refer to the Owner's Manual for emergency vehicle lifting procedures.
When properly positioned, a floor jack can be used to lift a Jeep vehicle. Support the vehicle in the raised position with jack stands at the front and rear ends of the frame rails.
Do not attempt to lift a Jeep vehicle with a floor jack positioned under:
- A body side sill.
- A steering linkage component.
- A drive shaft.
- The engine or transmission oil pan.
- The fuel tank.
- A front suspension arm.
- Transfer case.
Use the correct sub-frame rail or frame rail lifting locations only.
A vehicle can be lifted with:
- A single-post, frame-contact hoist.
- A twin-post, chassis hoist.
- A ramp-type, drive-on hoist.
When a frame-contact type hoist is used, verify that the lifting pads are positioned properly.
